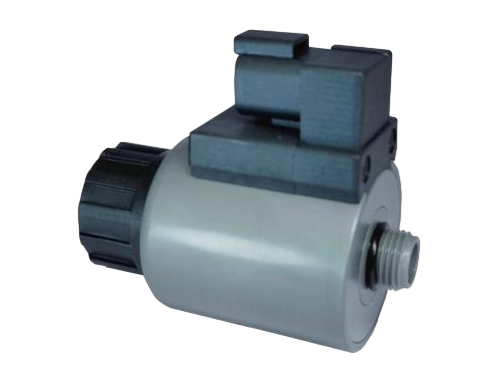

Proportional electromagnet GP37-S-C
Proportional electromagnet GP37-S-C
Proportional electromagnet GP37-S-C
Rated stroke(mm)  2
Full stroke(mm)  2.2
Rated current(A) 0.6
Rated suction(N)  35
Normal resistance20℃(Ω) 23
Force hysteresis(%)  ≤4
Email aykd_scb@126.com
Tel +86-372-2595077/2595078/2595088
Description
This series of product is an electromechanical conversion device. Within the range of rated stroke and rated current, the output force is proportional to the input signal. Matched with the proportional control amplifier, the valve core position of the electro-hydraulic proportional valve can be accurately controlled. It has the advantages of small volume, linear working balance and high repetition accuracy. It is often used as the power element of controlled proportional flow valve and proportional directional valve, and is used in construction machinery。
Parameters

model

GP37-S-C

Rated stroke(mm)

2

Full stroke(mm)

2.2

Rated current(A)

0.6

Rated suction(N)

35

Normal resistance20℃(Ω)

23

Force hysteresis(%)

≤4

Current hysteresis(%)

≤3

Repetition accuracy(%)

≤1

Withstand static oil pressure(Mpa)

21

Enclosure protection class

IP67

Power wiring mode

DT06-2S

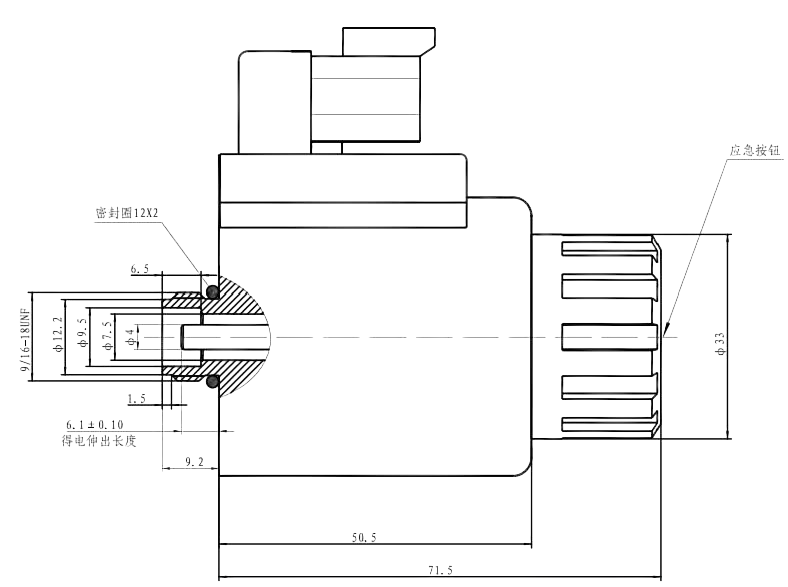

    Outline and installation dimensions:

    Anyang Kaidi Magnetic Technology Co., Ltd





    Precautions for use:

  •             An overcurrent protection device shall be set between the electrical control system and the connecting part of the electromagnet to avoid burning the electromagnet and your electric control components under abnormal conditions。

  •             The manual operation button is used for installation, commissioning, maintenance or emergency。

    Sample description:

  •             If customers have different needs and the performance of electromagnet remains unchanged, the connection size between electromagnet and valve body, power connection mode and extension length of push rod can be adjusted according to requirements。
