Main technical parameters：
model | GP63-S-A |
Rated current(A) | 3.3 |
Normal resistance20℃(Ω) | 2 |
Rated suction(N) | 170 |
Rated stroke(mm) | 4 |
Full stroke(mm) | ≥8 |
Force hysteresis(%) | ≤5 |
Current hysteresis(%) | ≤3 |
Repetition accuracy(%) | ≤1 |
Withstand static oil pressure(MPa) | 21 |
Operating oil temperature(℃) | –20 ~ +70 |
Enclosure protection class | IP65 |
Power connection mode | Plug type |

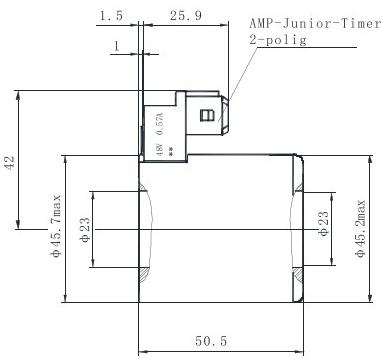

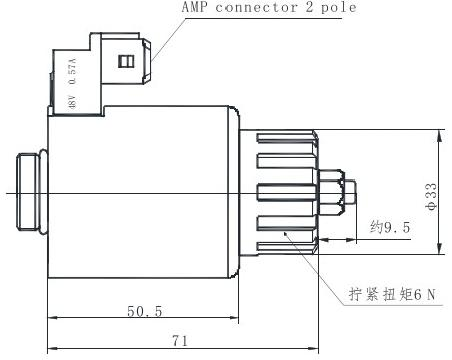

Externality & Installation Dimensions
GP63 Pin Mode
GP63 Series Feedback Pin Mode
Explanation Of Sample
If client have special requirements, we can adjust the connect dimension, power connect method and the extended length of push pin as demanding.
