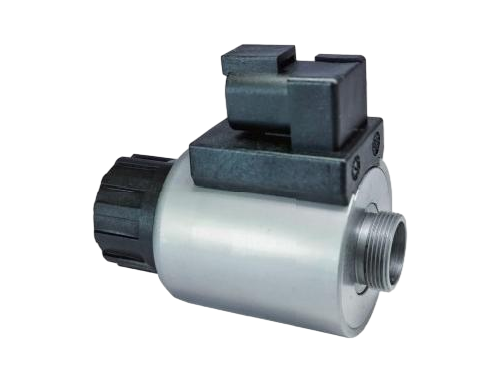

Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Proportional electromagnet GP63-S-B
Rated current(A)  2.6
Normal resistance20℃(Ω) 4.1
Rated suction(N) 170
Rated stroke(mm) 4
Full stroke(mm) ≥9
Force hysteresis(%) ≤5
Email
Tel
Description
purpose: This series of products are used in the electro-hydraulic proportional control system. They are used together with the proportional control amplifier to control Rexroth 10-way threaded proportional valve. Within the range of rated stroke and rated current, its output force is proportional to the input current. Through the built-in reaction spring, the characteristics of the output force are changed to make the output pressure of the system more stable. Stepless regulation of the input current within the rated range can realize stepless speed regulation and remote control of the actuator of the hydraulic system within the rated range。

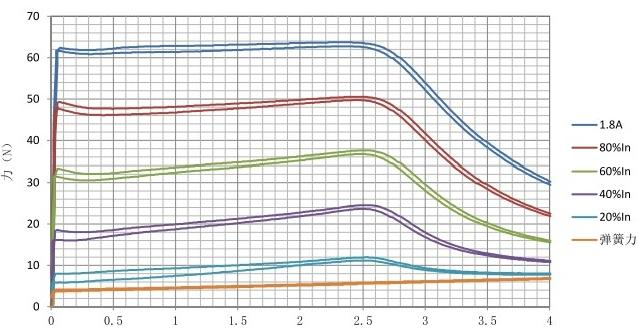

Parameters

Main technical parameters:

                        model

                        GP63-S-B

                        Rated current(A)

                        2.6

                        Normal resistance20℃(Ω)

                        4.1

                        Rated suction(N)

                        170

                        Rated stroke(mm)

                        4

                        Full stroke(mm)

                        ≥9

                        Force hysteresis(%)

                        ≤5

                        Current hysteresis(%)

                        ≤3

                        Repetition accuracy(%)

                        ≤1

                        Withstand static oil pressure(MPa)

                        21

                        Operating oil temperature(℃)

                        –20 ~ +70

                        Enclosure protection class

                        IP65

                        Power connection mode

                        Plug type

model

                        GP63-S-BIW

                        Rated current(A)

                        2.6

                        Normal resistance20℃(Ω)

                        4.1

                        Rated suction(N)

                        170

                        Rated stroke(mm)

                        4

                        Full stroke(mm)

                        ≥9

                        Force hysteresis(%)

                        ≤5

                        Current hysteresis(%)

                        ≤3

                        Repetition accuracy(%)

                        ≤1

                        Withstand static oil pressure(MPa)

                        21

                        Operating oil temperature(℃)

                        –20 ~ +70

                        Enclosure protection class

                        IP65

                        Power connection mode

                        Pin Mode

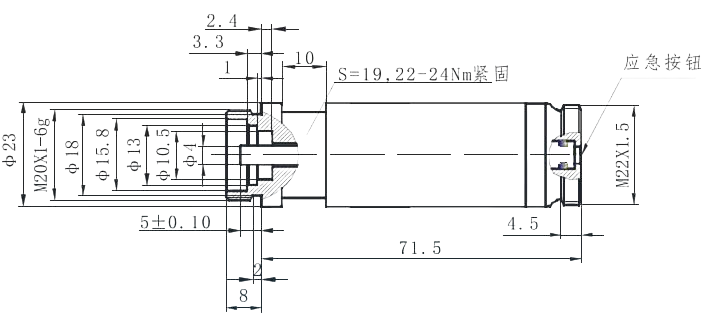

    Outline and installation dimensions

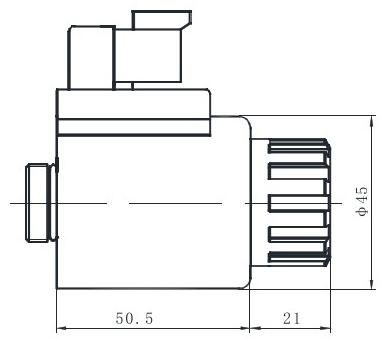

    GP63Plug type



   Anyang Kaidi Magnetic Technology Co., Ltd

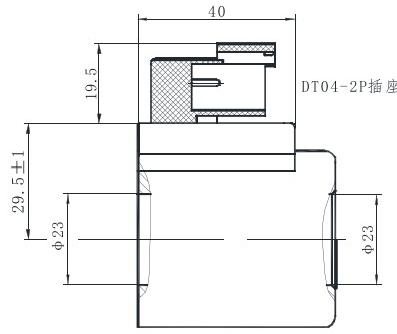

    GP63 series Plug type with feedback

   Anyang Kaidi Magnetic Technology Co., Ltd

    Precautions for use:

  •             An overcurrent protection device shall be set between the electrical control system and the connecting part of the electromagnet to avoid burning the electromagnet and your electric control components under abnormal conditions。

  •             The manual operation button is used for installation, commissioning, maintenance or emergency。

    Sample description:

    If customers have different needs and the performance of electromagnet remains unchanged, the connection size between electromagnet and valve body, power connection mode and extension length of push rod can be adjusted according to requirements。
