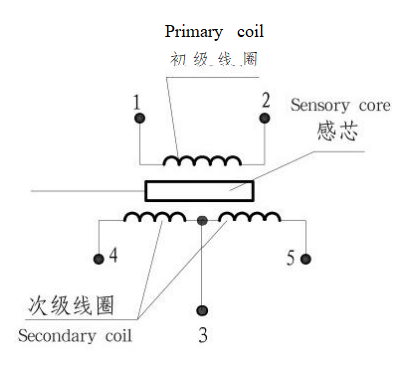

Main technical parameters

Stroke force characteristic curve

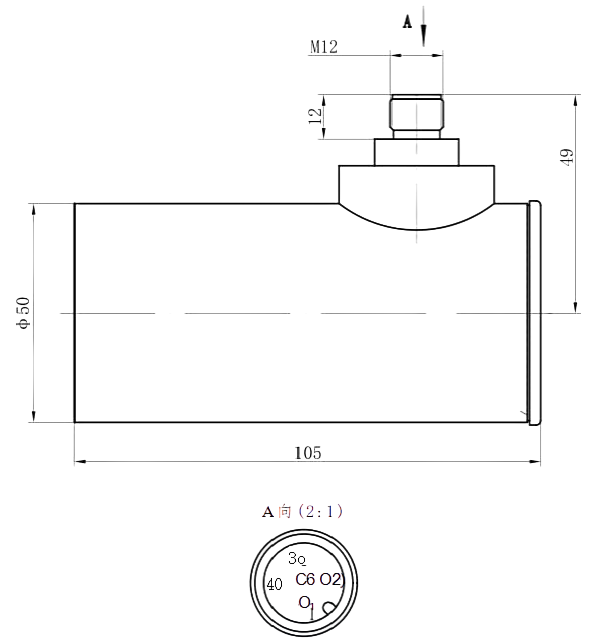

Outline and installation dimensions

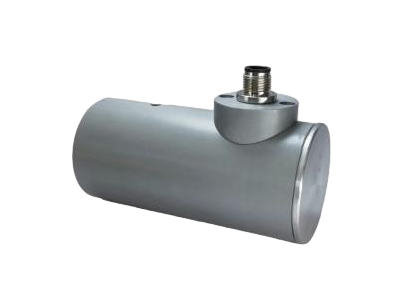

product model：MFZ9A-20YC (SG)

Precautions for use

●  The electromagnet adopts socket conforming to iso4400 standard. There are two specifications: with indicator light and without indicator light. You can choose according to your needs. The voltage specification of the socket with indicator light must be consistent with the voltage specification of the electromagnet body。

●  The manual push rod of the electromagnet is used for manual control during commissioning or in case of emergency. However, when the back pressure of the system is high and it is difficult to adjust, please use a cross screwdriver to slowly push the manual push rod. Impact force should not be used to avoid damaging the surface of the manual push rod and the guide inner hole, resulting in oil leakage of the electromagnet or failure to reset。

●  When two-way electromagnets are used, it must be ensured that the two electromagnets cannot be energized at the same time, so as to prevent the solenoid valve from working normally。

●  An overcurrent protection device shall be set between the electrical control system and the connecting part of the electromagnet to avoid burning the electromagnet and your electric control components under abnormal conditions。

Sample description

• If customers have different needs, under the condition that the performance of the electromagnet remains unchanged, the connection size between the electromagnet and the valve body, the extension length of the push rod and the working power supply voltage can be adjusted according to requirements。

• The characteristic curve is for reference only。

• The main performance parameters are obtained under the test conditions. The company reserves the right to modify parameters。
