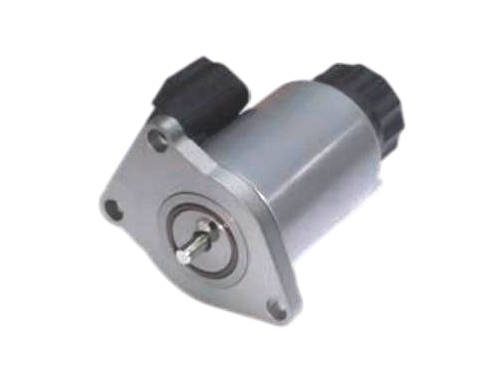

Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Proportional electromagnet GP63-S-BIW
Rated current(A) 2.6
Normal resistance20℃(Ω) 4.1
Rated suction(N) 170
Rated stroke(mm) 4
Full stroke(mm) ≥9
Force hysteresis(%) ≤5
Email
Tel
Description

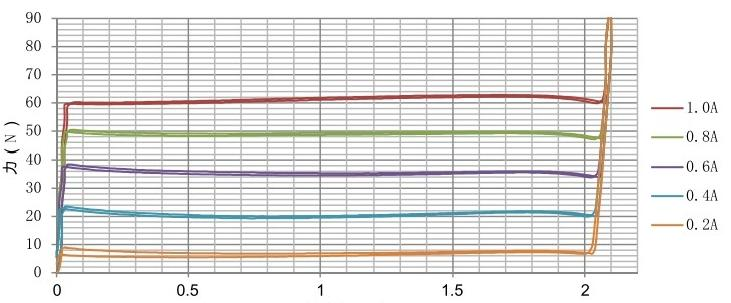

purpose: This series of products are used in the electro-hydraulic proportional control system. They are used together with the proportional control amplifier to control Rexroth 10-way threaded proportional valve. Within the range of rated stroke and rated current, its output force is proportional to the input current. Through the built-in reaction spring, the characteristics of the output force are changed to make the output pressure of the system more stable. Stepless regulation of the input current within the rated range can realize stepless speed regulation and remote control of the actuator of the hydraulic system within the rated range。
Parameters

Main technical parameters:

model

GP63-S-BIW

Rated current(A)

2.6

Normal resistance20℃(Ω)

4.1

Rated suction(N)

170

Rated stroke(mm)

4

Full stroke(mm)

≥9

Force hysteresis(%)

≤5

Current hysteresis(%)

≤3

Repetition accuracy(%)

≤1

Withstand static oil pressure(MPa)

21

Operating oil temperature(℃)

–20 ~ +70

Enclosure protection class

IP65

Power connection mode

Plug type

    GP63 Pin Mode



    Anyang Kaidi Magnetic Technology Co., Ltd



    GP63 Series Feedback Pin Mode

    Anyang Kaidi Magnetic Technology Co., Ltd





    Explanation Of Sample

    If client have special requirements, we can adjust the connect dimension, power connect method and the extended length of push pin as demanding.
