Screw proportional electromagnet

locationHome > Products > Screw proportional electromagnet

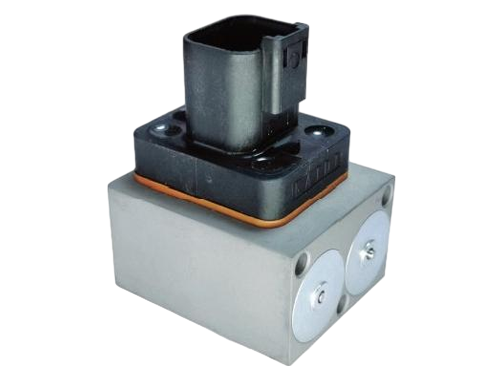

screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
screw Proportional electromagnet GRF35-4-A
Specifications(mm 35
trip(mm) 2+2
Rated suction(N) 56
Oil pressure resistance(MPa) 31.5
Enclosure protection class IP65
Temperature resistance grade Hlevel
Email aykd_scb@126.com
Tel +86-372-2595077/2595078/2595088
Description
The product is an electromechanical conversion device, and the output force is proportional to the current within the range of rated stroke and rated current; The electromagnet is installed with four high-strength screws, and the coil is fully plastic sealed structure, which is suitable for Rexroth EP variable displacement pump。
Parameters

Main technical parameters:

modelGRF35-4-A
Specifications(mm)35
trip(mm)2+2
Rated suction(N)56
Oil pressure resistance(MPa)31.5
Enclosure protection classIP65
Temperature resistance gradeClass H
