Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
Screw proportional electromagnet GP80-4-A
model GP80-4-A
Rated stroke(mm) 8
Full stroke(mm) ≥9
Rated current(A) 0.68
Rated suction(N) 100
resistance/20℃(Ω) 40
Force hysteresis(%) ≤4
Email aykd_scb@126.com
Tel +86-372-2595077/2595078/2595088
Description
This series of products is an electromechanical conversion device. Within the range of rated stroke and rated current, its output force is proportional to the input signal. Matched with the proportional amplifier, the valve core position of the electro-hydraulic proportional valve can be accurately controlled. It is suitable for many kinds of electro-hydraulic proportional valves such as pilot proportional overflow valve, proportional pressure reducing valve and electro-hydraulic proportional compound valve (PQ valve). It has high repetition accuracy and good linear gain。
Parameters

Main technical parameters:

                        model

                        GP80-4-A

                        Rated stroke(mm)

                        8

                        Full stroke(mm)

                        ≥9

                        Rated current(A)

                        0.68

                        Rated suction(N)

                        100

                        resistance/20℃(Ω)

                        40

                        Force hysteresis(%)

                        ≤4

                        Current hysteresis(%)

                        ≤3

                        Power on rate(%)

                        100

                        Repetition accuracy(%)

                        ≤1

                        Withstand static oil grinding(Mpa)

                        21

                        Heat resistance grade

                        F

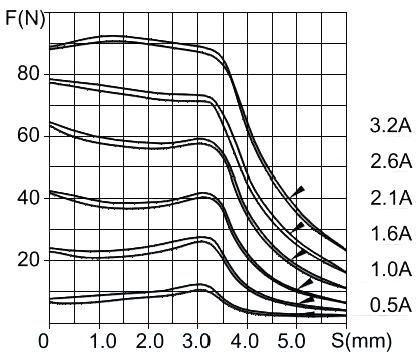

     Stroke force characteristic curve:

   Anyang Kaidi Magnetic Technology Co., Ltd

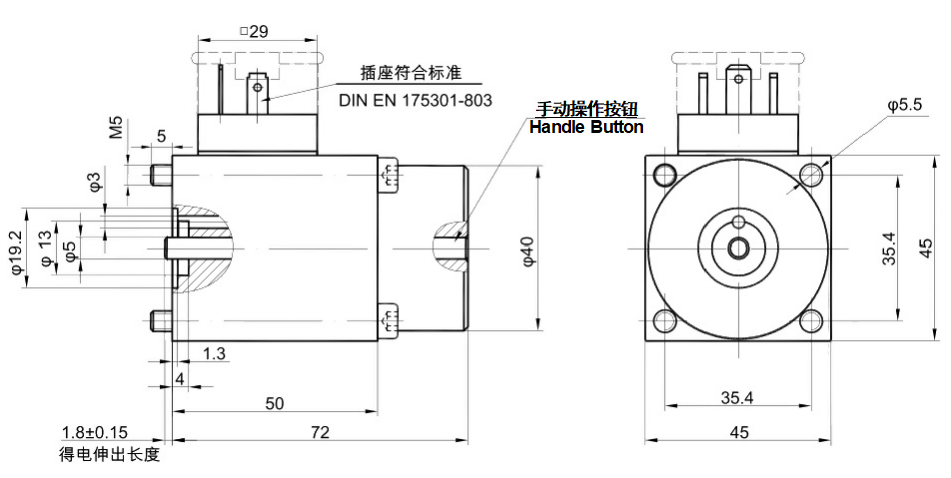

    Outline and installation dimensions:

   Anyang Kaidi Magnetic Technology Co., Ltd

    Precautions for use:

    ●The electromagnet adopts socket conforming to iso4400 standard。

    ●An overcurrent protection device shall be set between the electrical control system and the connecting part of the electromagnet to avoid burning the electromagnet and your electric control components under abnormal conditions。

    ●The manual operation button is used for installation, commissioning, maintenance or emergency。

    ●The working medium of the hydraulic system is mineral oil and phospholipid oil。

    ●When installing, the exhaust hole faces upward. When using, pay attention to exhaust the air in the electromagnet。

    ●The electromagnet is of continuous working system。



    Sample description:

    ●For applications beyond the requirements of this sample, please ask our company。

    ●The characteristic curve is for reference only。

    ●The main performance parameters are obtained under the test conditions. The company reserves the right to modify parameters。
